Mobile platform for people with limited mobility
E-mail: sale@gidrolast.com
International sales team
Technical specifications
Max.capacity:250 kg (550 lb); |
Length of the ramp:1200mm (2.650"); |
Closed height:200mm (45"); |
Rising time:20s; |
Atmospheric humidity:50% at +40°C (100°F). The electrical control panel must be installed in dry local between +3° C and +30°(-35°F...to 90°F); local between +3° C and +30°; |
Temperature:the installation is designed to operate between -40°C and +80°C (-40°F...to 176°F); |
Conformity test:all our systems are checked according to EC machinery directive 2006/42/EC and EN 14010; |

Description

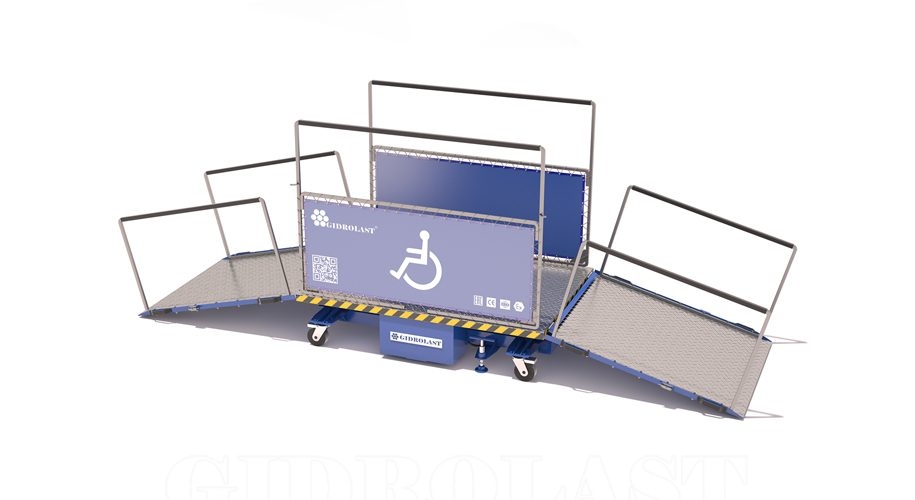

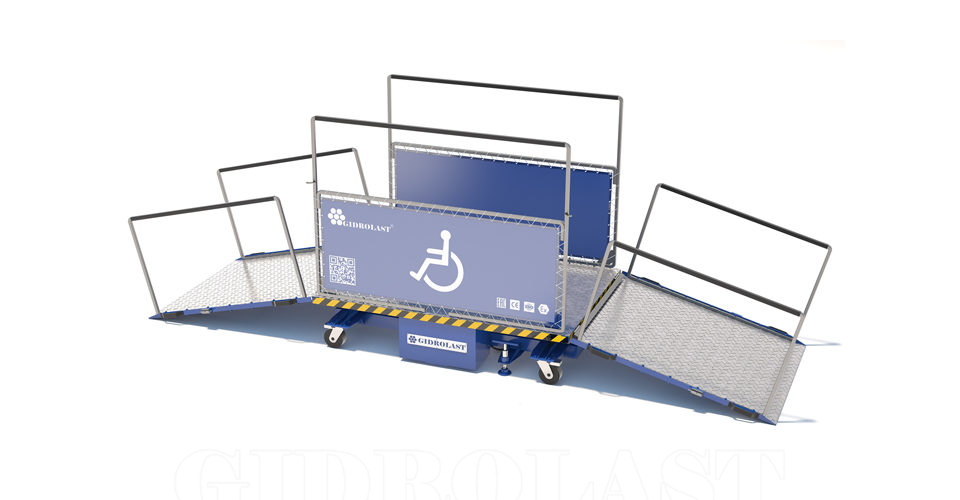

DPX is a mobile platform lift specially designed to lift wheelchair users in and out of trains. Due to its design and light construction the DPX is easy to move and position. The platform lift is quick and easy to operate and only needs to be operated by one person. Safety list under the platform, emergency stop, mechanical lowering device and high guard rail on both sides of the platform make it possible to lift the user securely. Both the upper and lower ramp ensure that the user cannot roll over the edge while the platform is in motion.
The DPX is provided with a width-adjustable ramp as standard. The ramp can be adjusted 1200 mm width-wise so that the ramp can be adapted to different train door widths.
Product details
- A. Built-in hydroelectric station.
- B. 4-wheelbase, two fixed wheels, two swivel wheels with brakes.
- C. Lenticular corrugated coating. The platform is a prefab welded construction with an anti-slip surface made of corrugated sheet steel.
- D. Platform with fence for safety.
- E. Limit switches for limiting the lifting height and shutting down the hydraulic station after lowering.
- F. Mechanical movement limiters in the folded state.
- G. Protection against overturning of the lifting mechanism.
- H. Press – oilers (greases) for service maintenance of all mobile units of the lifting mechanism.
- I. Chokes for adjusting the lifting and lowering speed of the lifting table.
- J. Safety valves (preventing the table from falling in case of pressure loss in the hydraulic system).
- K. Overload protection.
- L. Entire folding ramps for exit/entry (2 pcs.).
- M. Hermetic control cabinet.
- N. Mobile remote control.
- O. Accumulators are instaled in the cabinet.
