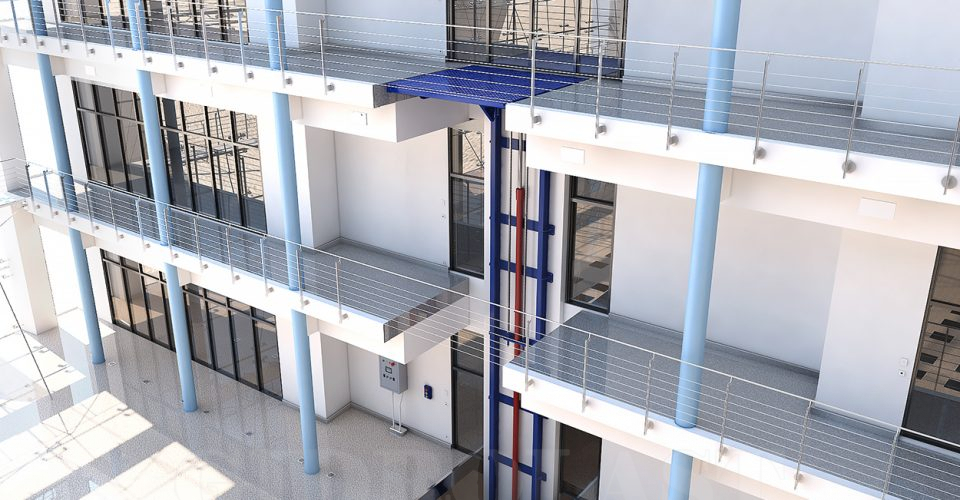

Cantilever freight lifts
E-mail: sale@gidrolast.com
International sales team
Technical specifications
| Load capacity:up to 3,000 kg; |
| Standard platform dimensions:1,500 × 1,200 mm; |
| Lifting height:up to 14 m; |
| Platform height (lowered position):150 mm; |
| Operating temperature range:-20°C to +50°C; |
| Explosion-proof version:available upon request; |
| Lifting speed:6–15 cm/s; |
| Motor power:3–15 kW (depending on load capacity and lifting speed); |
| Power supply:380 V AC; |
| Unit weight:from 850 kg. |
Product details
- A. Remote-mounted hydraulic power unit.
- B. Wall-mounted control panel and remote-control station.
- C. Anti-slip chequer plate platform surface.
- D. Limit switches for maximum lifting height control and automatic hydraulic power unit shutdown after lowering.
- E. Reinforced heavy-duty lifting platform.
- F. Flow-control valves for adjustment of lifting and lowering speeds.
- G. Hydraulic safety valves preventing uncontrolled platform descent in the event of hydraulic system pressure loss.
- H. Protective coating system compliant with GOST 9.032, Class VII coating specification. Climatic operating category U1 according to GOST 9.104.
- Key Advantages
- Load capacities up to 3,000 kg
- Lifting heights up to 14 m
- Extremely compact mast design
- Minimal pit requirements
- Increased usable platform area
- Heavy-duty hydraulic lifting system
- Automatic mechanical locking devices
- Smooth and reliable operation
- Low maintenance requirements
- Custom-engineered solutions tailored to customer requirements
- Optional explosion-proof configuration available
Why choose our company?
Quote solutions
Do not hesitate to contact our international sales team, located in Milan, ITALY, who are at your disposal for all commercial and technical requests or any other inquiry. For your information, Gidrolast is seeking foreign distributors to publicise our Company and sell our products.
For a detailed quotation, customers may submit an inquiry, technical specification, engineering drawing, or project layout using any convenient communication method. Since all Gidrolast lifting equipment is engineered and manufactured according to individual customer requirements, modifications to dimensions, capacities, operating parameters, or platform configurations typically do not result in significant additional costs associated with custom engineering. This flexible approach allows each lifting solution to be optimized for its specific application while maintaining cost efficiency and high performance.
