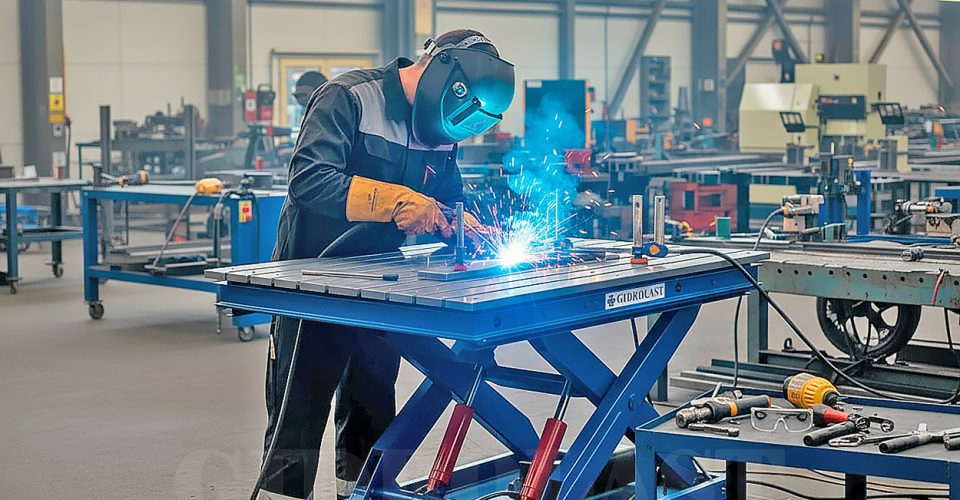

Assembly and welding lift tables
E-mail: sale@gidrolast.com
International sales team
Technical specifications
| Worktop plate material:aluminum profile or grey cast iron; |
| Fixture mounting system:T-slots and Ø28 mm system holes; |
| Table flatness tolerance:0.5 mm/m²; |
| Table height:500–1500 mm; |
| Working surface length:from 725 mm; |
| Working surface width:from 725 mm; |
| Load capacity of grey cast iron tables:from 1,000 kg/m²; |
| Load capacity of aluminum profile tables:up to 500 kg/m²; |
| Hydraulic cylinders:CG-80.40×400.22; |
| Overall weight of grey cast iron tables:from 300 kg; |
| Overall weight of aluminum profile tables:from 100 kg; |
| Electric motor power:3.0 kW; |
| Power supply voltage:380 V, 3-phase; |
| Operating temperature range:-10°C to +35°C. |

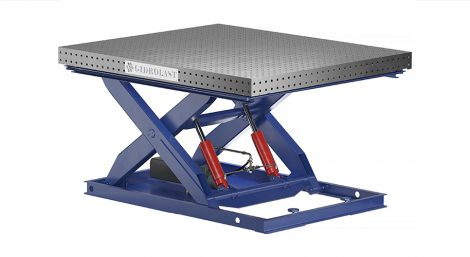

Product details
- A. Remote or integrated hydraulic power unit.
- B. Wall-mounted control panel and wired remote control pendant.

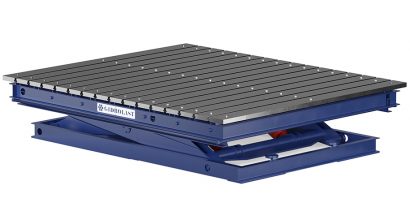

- C. Aluminum profile with T-slots or grey cast iron worktop.
- D. Limit switches for restricting the lifting height and automatically shutting down the hydraulic power unit after lowering.
- E. Mechanical travel stops in the fully lowered position.
- F. Mechanical travel stops in the fully raised position.
- G. Reinforced scissor lift platform.
- H. Anti-tip protection system for the scissor lift mechanism.
- I. Safety frame.
- J. Grease nipples for servicing and lubrication of all moving parts of the lifting mechanism.
- K. Flow control valves for adjusting lifting and lowering speeds.
- L. Hydraulic safety valves preventing accidental table descent in the event of hydraulic pressure loss.
- M. Overload protection sensors.
Why choose our company?
Quote solutions
For a detailed quotation, please send us your inquiry, technical specification, or drawings using any convenient method.
Changes to dimensions or technical parameters generally do not result in additional costs due to the “custom nature” of the design, as all Gidrolast lifting equipment is manufactured according to the specific requirements of each customer and can be tailored to individual applications.
