Stationary tail lifts

It greatly facilitates loading and unloading goods to and from the loading bay of your vehicle to the ground or to a loading dock

Order

Phone: +39 02 94756257
E-mail: sale@gidrolast.com
International sales team

Description

Tail lifts make it much easier to safely load and unload trucks and are synonymous with cost efficiency, flexibility and a high level of operating comfort for users. With more than 40 products, Gidrolast caters for weight classes between 500 kg and 4,000 kg. The service network with blanket coverage guarantees unrestricted and optimum service for each and every customer. The most important fields of application include: food and transport logistics, waste management, emergency services and local authorities as well as leasing and rental business.

A tail lift, also called a liftgate, is an appliance that is mostly installed on the back of a lorry or van. It greatly facilitates loading and unloading goods to and from the loading bay of your vehicle to the ground or to a loading dock. The use of a tail lift eliminates the need for a forklift or truck-mounted forklift to load and unload the truck. Tail lifts are available for many sizes of vehicles.

Every lift table is designed and manufactured to meet the industry safety requirements set forth in ANSI MH29.1, and can be modified or customized to customer specifications.

All Gidrolast lifts are designed to exceed the requirements of ANSI MH29.1, Safety Requirements for industrial scissor lifts.

Additional functions

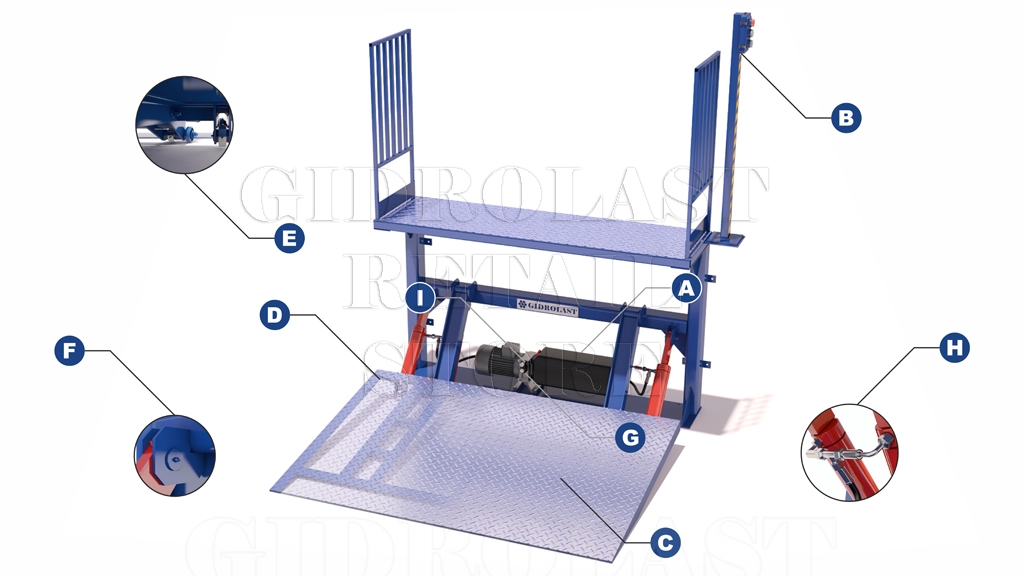

Product details

A. Remote hydroelectric station.
B. Remote control panel.
C. Lenticular corrugated coating.
D. Reinforced lifting platform.
E. Protection against tilting of the scissor lift.
F. Press – oilers (greases) for service maintenance of all mobile units of the lifting mechanism.
G. Chokes for adjusting the lifting and lowering speed of the lifting table.
H. Safety valves (preventing the table from falling in case of pressure loss in the hydraulic system).
I. Overload protection.

Lifting platforms are designed to carry dynamic and off centre loads within the BS EN 1570 description of half of the load on half of the platform length, 1/3 of the load on half of the platform width. Platforms made with square not radius edges for greater strength, better load support and machinery mounting. Platforms can be smooth or slip resisting tear pattern plate.
Heavy duty, quality arm roller bearings. Crown head, yoke type, track roller bearings with a twin ball and cage, lithium greased and sealed for life. Chromed for heavy duty or stainless steel axle and cylinder pins as options.
Integral (within baseframe) or remote power packs. IP54 as standard. 3 phase, single phase or low voltage DC and manual pumps available. Hold to run emergency lowering.

The construction, hydraulic and electrical systems conform to the requirements of European standards. Typically these include safety gaps and clearances between fixed and moving parts, moving and moving parts, hose break rupture valves, mechanically actuated safety trip device, manually operated blocking devices, overload detection and protection. Most of Gidrolast scissor lift tables are supplied with an individual Load Test Certificate as well as the applicable Certificate of Conformity or Certificate of Incorporation.

Quote solutions

Do not hesitate to contact our International sales team, located at Milan, ITALY at your disposal for all commercial and technical requests or any other inquiry.
For your information, Gidrolast searchs for foreign distributors to make known our Company and sell our products.

If you want advanced technical information, send us the following form and we will get back to you as soon as possible.
