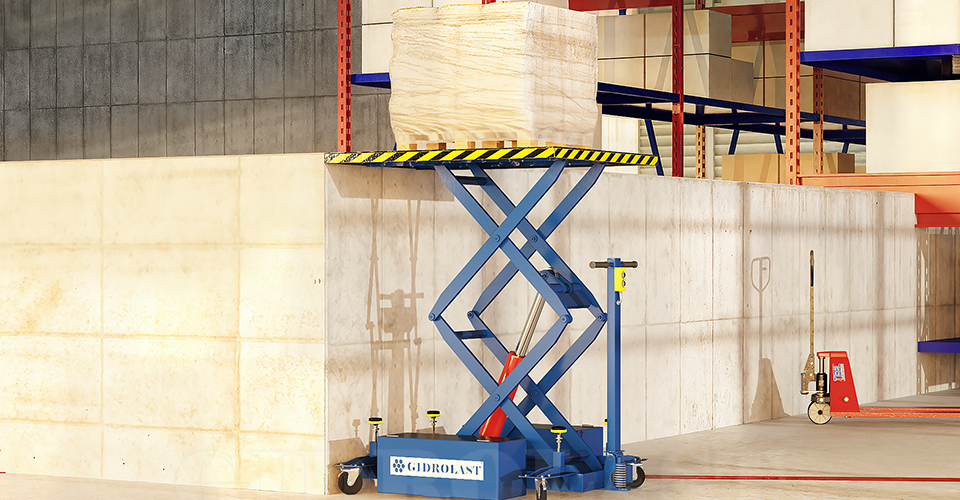

Scissor lifts truck
E-mail: sale@gidrolast.com
International sales team
Technical specifications
| Capacity:500 kg; |
| Platform lenght:1250 mm; |
| Platform width:600 mm; |
| Lifting stroke up to:1800 mm; |
| Minimum height:350 mm; |
| Lift speed with/without load:90/110 mm/s; |
| Lowering speed with/without load:100/90 mm/s; |
| Lift cycles max.:50 per battery charge; |
| Battery capacity:30 Ah/per unit; |
| Battery voltage:24 V/per unit; |
| Net weight:450 kg. |
Product details
- A. Built-in hydro-electric station, 24 V, 1.1 kW.
- B. 4-wheelbase, two fixed wheels, two swivel wheels with brakes.
- C. Lenticular corrugated coating. The platform is a prefab welded construction with an anti-slip surface made of corrugated sheet steel.
- D. Limit switches for limiting the lifting height and shutting.
- E. Mechanical movement stops in the folded state.
- F. Protection against tilting of the scissor lift.
- G. Press – oilers (greases) for service maintenance of all mobile units of the lifting mechanism.
- H. Chokes for adjusting the lifting and lowering speed of the lifting table.
- I. Safety valves (preventing the table from falling in case of pressure loss in the hydraulic system).
- J. Overload protection.
- K. Hermetic control cabinet.
- L. Mobile remote control.
Lifting platforms are designed to carry dynamic and off centre loads within the BS EN 1570 description of half of the load on half of the platform length, 1/3 of the load on half of the platform width. Platforms made with square not radius edges for greater strength, better load support and machinery mounting. Platforms can be smooth or slip resisting tear pattern plate.
Heavy duty, quality arm roller bearings. Crown head, yoke type, track roller bearings with a twin ball and cage, lithium greased and sealed for life. Chromed for heavy duty or stainless steel axle and cylinder pins as options.
Integral (within baseframe) or remote power packs. IP54 as standard. 3 phase, single phase or low voltage DC and manual pumps available. Hold to run emergency lowering.
The construction, hydraulic and electrical systems conform to the requirements of European standards. Typically these include safety gaps and clearances between fixed and moving parts, moving and moving parts, hose break rupture valves, mechanically actuated safety trip device, manually operated blocking devices, overload detection and protection. Most of Gidrolast scissor lift tables are supplied with an individual Load Test Certificate as well as the applicable Certificate of Conformity or Certificate of Incorporation.
