Technical specifications
| Max.capacity:no more than 300 kg; |

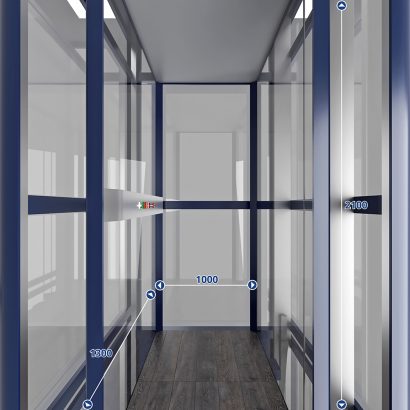

| Internal dimensions of the cabin:1000х1300 mm; |
| Installation dimensions:1500х2000 mm; |
| Power supply voltage:220/50 V/Hz; |
| Lifting speed:from 0.03 to no more than 0.15 m/sec; |
| Type of drive used / transmission type:Electric / Multi-threaded screw-nut; |
| Degree of protection against dust and water penetration:IP54; |
| Climatic performance according to GOST 15150:U1; |
| Operating temperature:from -20°С to +50°С; |
| Voltage in the control circuit:24 V; |
| Mine lining:aluminum profile, double-glazed windows; |
| Lifting height:2400 mm. |
Description

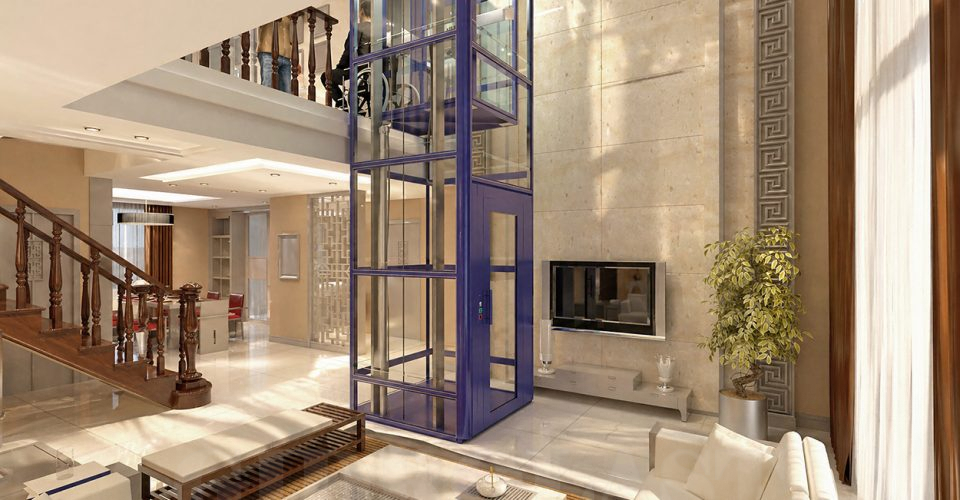

Discover the ideal solution for your country home with the Gidrolast Pro 1 cottage lift! Enjoy unparalleled comfort and convenience as you move between the floors of your cottage. We are experts in the design, installation, and assembly of lifting equipment, and our primary goal is to provide you with the highest quality and absolute reliability.
Panoramic View and Sense of Freedom: The fully glazed construction ensures visual openness and abundant natural light. The user can enjoy a ride with a wide field of view, which eliminates any feeling of enclosure and ensures psychological comfort.
Premium Design for Prestigious Properties: The restrained aesthetics of the glass-and-metal combination integrate harmoniously into the architectural environment of modern shopping centers, business complexes, hotels, and public spaces.
Optimal Lifting Speed: Thanks to in-house production of lead screws using the rolling method, an optimal travel speed has been achieved without increasing the motor rotation frequency. This reduces vibration and ensures a smooth, quiet ride, which is critically important for lifting heights exceeding 2 meters.
Comprehensive Safety Systems: The lift is equipped with a multi-level protection system, including limit switches for precise stopping, an emergency nut, safety barriers, emergency “STOP” buttons, and other components designed to ensure safety.
Complete Set of Documentation: Includes a passport with an acceptance certificate and detailed installation drawings required for registering the equipment with Rostechnadzor (Russian Federal Environmental, Industrial and Nuclear Supervision Service).
Production Flexibility: Our own design bureau and modern production facilities allow modifications to the design to solve unique customer needs, deviating from the standard series.
Easy Maintenance: All wear-and-tear parts are manufactured in-house and are constantly in stock, guaranteeing fast delivery times for spare parts.
Product details

- A. Frame base.
- B. Drive column with electric drive, lead screw with nuts, and carriage.
- C. Load-bearing device.
- D. Metal frame shaft.
- E. Includes 2 doors with mechanical closers and electromagnetic locks.
- F. Reinforced laminated glass construction.
- G. Limit switches for precise stopping.
- H. Emergency “STOP” button / Multi-level protection system.
