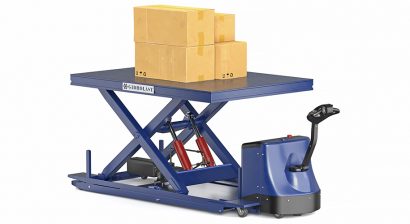

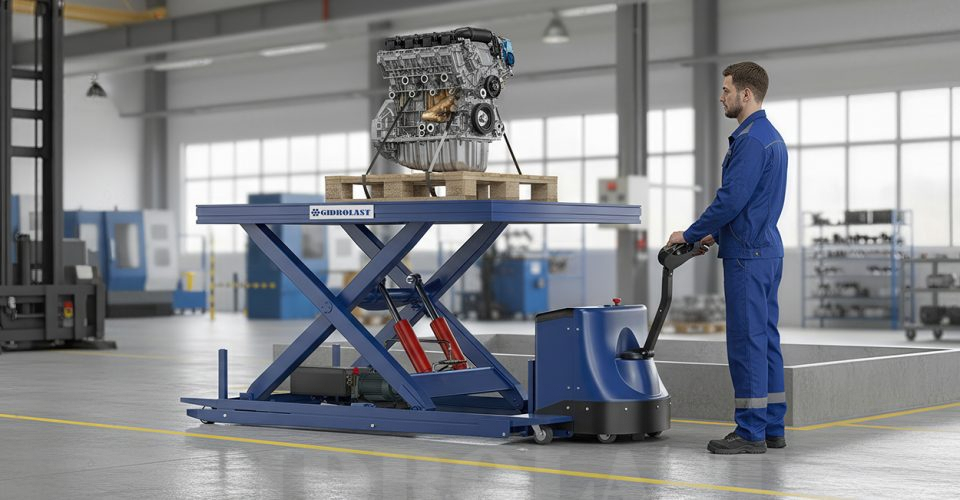

Electro-hydraulic mobile lift table
E-mail: sale@gidrolast.com
International sales team
Technical specifications
| Load capacity:350 kg; |
| Maximum platform height:1300 mm; |
| Minimum platform height:370 mm; |
| Platform dimensions:910 × 500 × 53 mm; |
| Wheel size:Ø 125 × 40 mm; |
| Lifting speed (loaded / unloaded):90 / 110 mm/s; |
| Lowering speed (loaded / unloaded):100 / 90 mm/s; |
| Battery voltage / rated capacity:2 × 12 V / 15 Ah; |
| Lift motor power:0,8 kW; |
| Battery charger:24 V / 3 A (integrated). |
Product details
- A. Reliable CURTIS DC electronic controller.
- B. Integrated battery charger powered from a standard 220 V AC outlet.
- C. FREI (Germany) ergonomic control handle.
- D. Anti-roll-back system for safe operation on inclined surfaces.
- E. Tandem load rollers.
- F. Electromagnetic braking system.
- G. Limit switches for maximum lifting height control and automatic hydraulic power unit shutdown after lowering.
- H. Hydraulic safety valves preventing platform descent in the event of hydraulic system pressure loss.
- I. Anti-tip protection system for enhanced stability of the scissor lift mechanism.
- J. Remote-mounted or integrated hydraulic power unit.
- K. Mechanical travel stops for secure positioning in the fully lowered state.
Why choose our company?
Quote solutions
For a detailed quotation, customers may submit an inquiry, technical specification, drawing, or layout using any convenient communication method.
Since all Gidrolast products are designed and manufactured according to individual customer requirements, modifications to dimensions, capacities, or operating parameters typically do not result in significant additional costs associated with custom engineering. This flexible manufacturing approach allows each lifting solution to be optimized for the specific application while maintaining cost efficiency and high performance.
