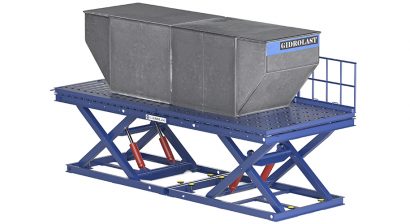

Air cargo heavy duty scissors lift
E-mail: sale@gidrolast.com
International sales team
Technical specifications
Capacity:to 7000kg (15.500lb); |
Dimensions of table:3600 х 2700mm (140"x 100"); |
Max.lifting height:to 6000mm (240") |
Min.height of the platform:from 300 mm (12"); |
Operating temperature:from -20° С to +50° С, (-4°F...to 122°F); |
Explosion protection ATEX rated:are available; |
Description

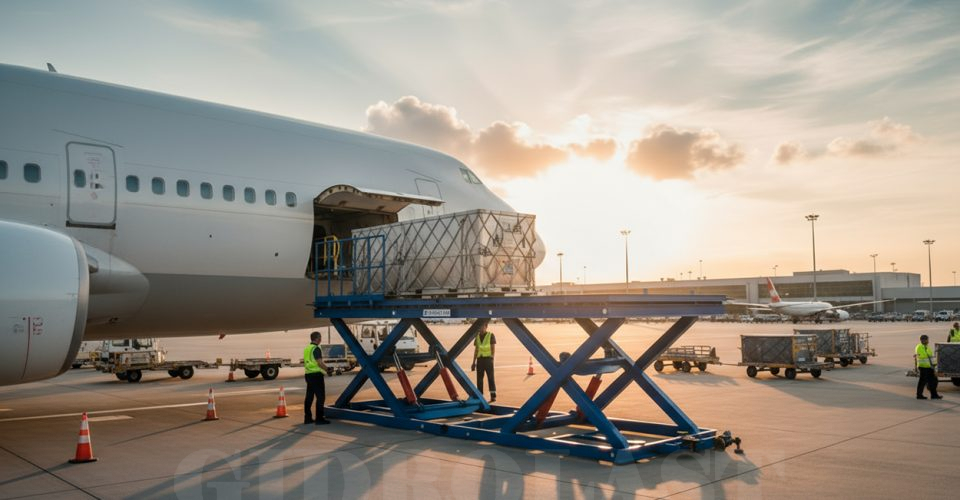

Because of its premium features and ability to provide up to five times the number of cycles as competing brands, the air cargo heavy-duty scissors lift has become the standard for the logistics and aerospace industries. Premium features included on these air container dock lifts include captured rollers, two-piece self-aligning cylinder, one-piece axle pins and high impact spiral wound bearings – all of which combine to give our customers the most rigid, robust and longest-lasting dock scissors lift available.
Product details
- All scissors rollers are captured within structural steel channels to provide excellent load stability;
- High impact, spiral wound bearings at every pivot point provide maintenance-free, rugged resistance to abrasion, impact and uneven loads;
- Structural cross-members at every pinned joint in the scissors assembly minimises leg deflection due to twisting or spreading under high/uneven loading;
- All hydraulic cylinders contain two-piece, self-aligning piston rods that transmit minimal side forces to the cylinder hinges/pins, significantly reducing wear;
- Structural steel channels in all upper and lower frames provide additional rigidity and resistance to twisting and bending of the lift under load;
- Tubular steel legs and added stiffeners provide overall stability and straight, repeatable tracking of the rollers as the lift raises and lowers;
- Joints, the most critical wear points in the lift, feature chrome-plated, 100,000 psi, ultimate-strength pins for premium load strength and long life;
