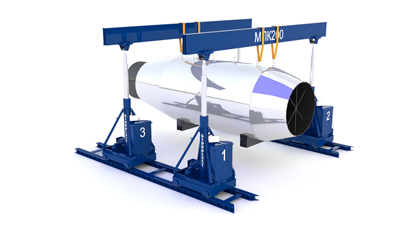

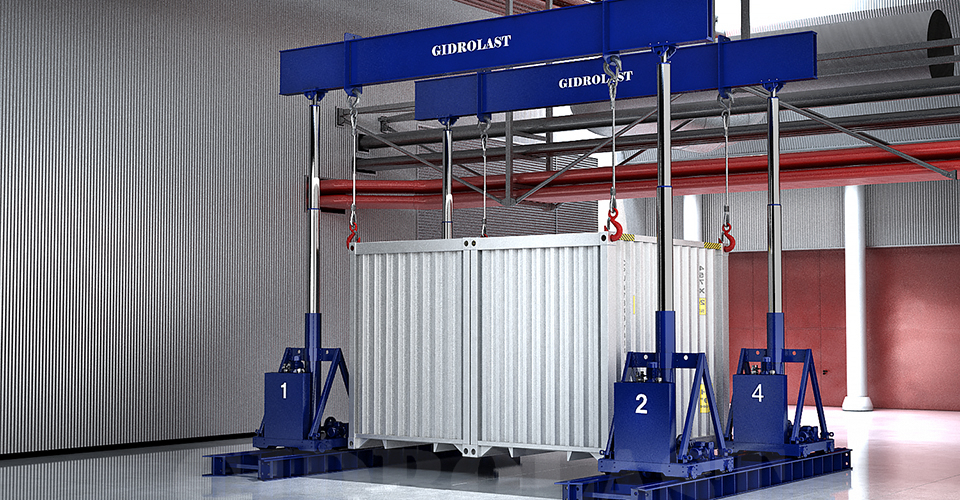

Hydraulic gantry systems
E-mail: sale@gidrolast.com
International sales team
Technical specifications
| Maximum lift height:12 meters (40ft); |
| Maximum load capacity:from 12t (26.500lb) to 1 000t (2.200k lb); |
| Rate of ascent / descent under load:2 mm/s; |
| Speed of horizontal movement:7 mm/s; |
| Maximum pressure on the working surface:and 5 N/cm2; |
| Voltage:380/440 Vac, 50/60 Hz. |
Product details
- A. A. Control cabinet. Hydraulic locking system. Hydraulic power pack is contained in the unit.

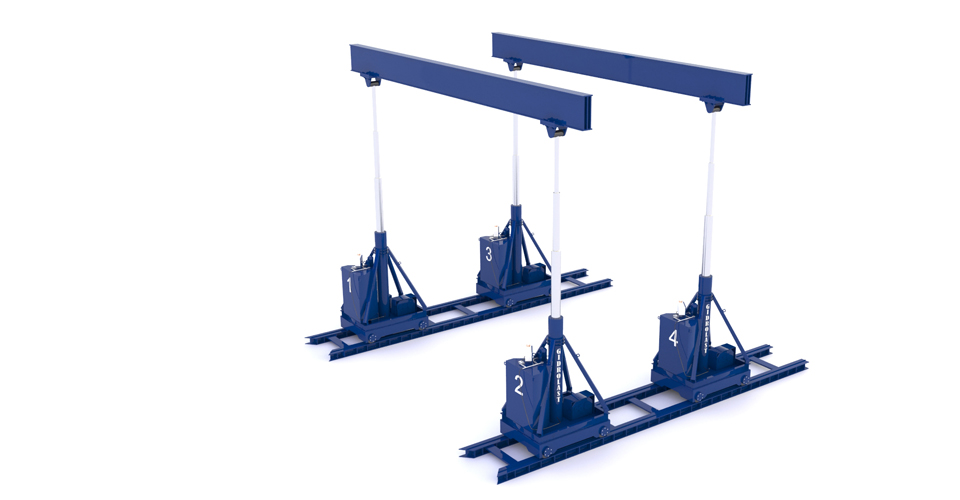

- B. Telescopic system consisting in 2 or 4 rack lifts. Two- or three-stage fully powered hydraulic cylinders. Self-propelled wheels.
- C. Upper support beam made with the following sizes: 6, 8 and 10 meters, number of beams in the delivery set is 2 pcs. For a four-rack system and 1 beam for a two-rack complex. Octagonal beam design.
- D. Block rails are supplied 3 meters long, and are installed on both sides of the longitudinal lift line, under each rack. Block rails are interconnected by bolted connection.
- E. Roller blocks of lateral displacement are installed in pairs on each beam; Optionally equipped with synchronous drive.
- F. Connection cables and wires – 1 set.
- G. Software – 1 set.
- H. Safety Valves. GidrolastSafe control system.
- I. A set of specialized tools required for dismantling/mounting the system.
- J. Seal kit. As well as spare parts for tools and accessories.
