Description

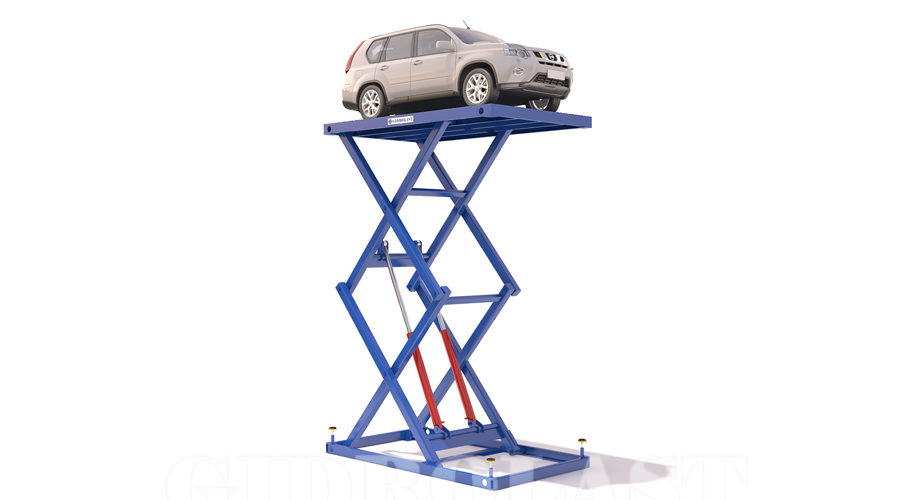

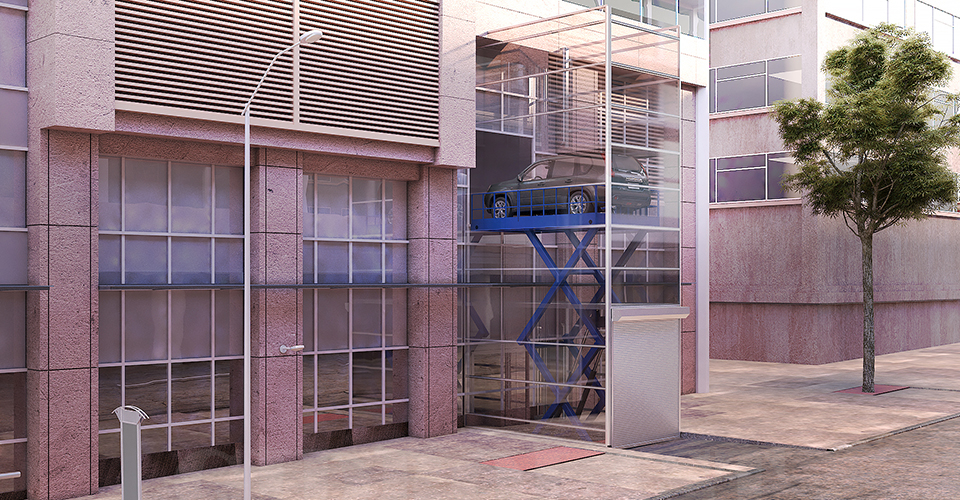

The hydraulic moto parking lift Gidrolast APX can be used to automobile between different levels, suitable for moving moto technics between floors, from the basement to the first floor, or to the second floor.
The Gidrolast APX parking lift is designed for residential and restricted use, and there are also a number of parking lift systems which stand out due to their versatility in a built environment.
Efficiency, ease of use, conservation of the property and the environment – parking lifts are an idea long in the making, and rapidly becoming more popular.
Custom-made products are also available, made according to your detailed request. Please tell us the load weight, lift height, and platform size and our engineer will design a the spoke hydraulic car lift for you.

Heavy duty, quality arm roller bearings. Crown head, yoke type, track roller bearings with a twin ball and cage, lithium greased and sealed for life. Chromed for heavy duty or stainless steel axle and cylinder pins as options.
Integral (within base frame) or remote power packs. IP54 as standard. 3 phase, single phase or low voltage DC and manual pumps available. Hold to run emergency lowering.

Product details

The construction, hydraulic and electrical systems conform to the requirements of European standards. Typically these include safety gaps and clearances between fixed and moving parts, moving and moving parts, hose break rupture valves, mechanically actuated safety trip device, manually operated blocking devices, overload detection and protection. Most of Gidrolast scissor lift tables are supplied with an individual Load Test Certificate as well as the applicable Certificate of Conformity or Certificate of Incorporation.

A. Remote hydraulic station.
B. Remote control panel.
C. Lenticular corrugated coating.
D. Limit switches for limiting the lifting height and shutting.
E. Mechanical movement stops in the folded state.
F. Mechanical movement limiters in the unfolded state.
G. Reinforced lifting platform.
H. Protection against tilting of the scissor lift.
I. Inspection service hatch.
J. Press – oilers (greases) for service maintenance of all mobile units of the lifting mechanism.
K. Chokes for adjusting the lifting and lowering speed of the lifting table.
L. Safety valves (preventing the table from falling in case of pressure loss in the hydraulic system).
M. Overload protection.

Quote solutions

Do not hesitate to contact our international sales team, located in Milan, ITALY, who are at your disposal for all commercial and technical requests or any other inquiry.
For your information, Gidrolast is seeking foreign distributors to publicise our Company and sell our products.

If you want advanced technical information, send us the following form and we will get back to you as soon as possible.
