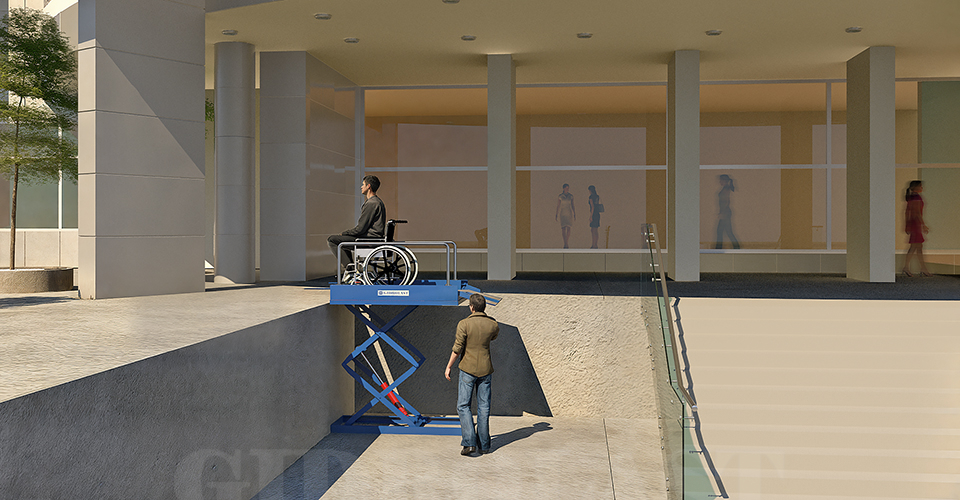

Mobile platform for people with limited mobility
E-mail: sale@gidrolast.com
International sales team
Technical specifications
Max.capacity:300 kg; |
Platform lenght:1600 mm; |
Platform width:1200 mm; |
Minimum height:300 mm; |
Lifting stroke up to:2000 mm; |
Scissors type:double scissors; |
Lift speed with/without load:42 mm/s; |
Lowering speed with/without load:35 mm/s; |
Lift cycles max.:10 per hour; |
Lift function:electro-hydraulic; |
Power:1,1 kWh; |
Delivery:fully assembled; |
Frequency:50 Hz; |
Voltage:380 V; |
RAL colour:RAL 5017; |
Net weight:585 kg. |
Description
Gidrolast the most diverse, highest quality, and longest lasting scissor lift tables in the world providing the most stable, dependable, and versatile method of lifting heavy loads, industrial scissor lift tables are our most popular and efficient style of industrial lift. Because of their simplicity and few moving parts, maintenance-free bushings, and wide acceptance by customers, scissors lift tables provide many years of trouble free operation for relatively small capital investment.
Scissor lift mechanisms are manufactured in a vast array of configurations, are easily modified by narrowing, widening, combining or stacking, and can efficiently move loads of any size and capacity to heights of more than 10m. Completely pneumatic or mechanical scissors tables are also available.
Every lift table is designed and manufactured to meet the industry safety requirements set forth in European safety standard EN 1570-1, and can be modified or customized to customer specifications.
Heavy duty, quality arm roller bearings. Crown head, yoke type, track roller bearings with a twin ball and cage, lithium greased and sealed for life. Chromed for heavy duty or stainless steel axle and cylinder pins as options.
Integral (within baseframe) or remote power packs. IP54 as standard. 3 phase, single phase or low voltage DC and manual pumps available. Hold to run emergency lowering.
Product details
- A. Remote hydraulic station.
- B. Fencing, 1000mm height.
- C. Mechanical movement limiters in the unfolded state.
- D. Protection against tilting of the scissor lift.
- E. Press – oilers (greases) for service maintenance of all mobile units of the lifting mechanism.
- F. Chokes for adjusting the lifting and lowering speed of the lifting table.
- G. Safety valves (preventing the table from falling in case of pressure loss in the hydraulic system).
- H. Overload protection.
- I. Mechanical ramp.
- J. Remote control (wired).
- K. Protective corrugation.
- L. Emergency stop button.
- M. Anti-slip stripes.
