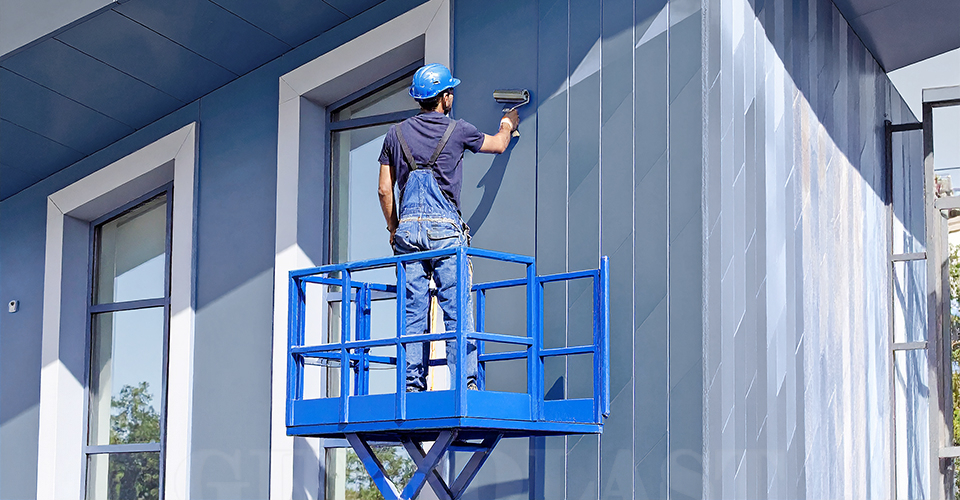

Small working platforms
E-mail: sale@gidrolast.com
International sales team
Technical specifications
| Capacity:500 kg; |
| Platform lenght:1250kg; |
| Platform width:600 mm; |
| Lifting stroke up to:1800 mm; |
| Minimum height:350 mm; |
| КолесаLift function:hydro-electric; |
| Platform type:closed; |
| Push handle type:fixed; |
| Lift speed with/without load:90 / 110 mm/s; |
| Lowering speed with/without load:100 / 90 mm/s; |
| Lift cycles max.:50 per battery charge; |
| No. of batteries:2; |
| Battery capacity:30 Ah/per unit; |
| Battery voltage:24 V/per unit; |
| Delivery:fully assembled; |
| RAL colour:RAL 5017; |
| Net weight450 kg. |
Product details
- A. Built-in hydro-electric station, 24 V, 1.1 kW.
- B. 4-wheelbase, two fixed wheels, two swivel wheels with brakes.
- C. Lenticular corrugated coating. The platform is a prefab welded construction with an anti-slip surface made of corrugated sheet steel.
- D. Limit switches for limiting the lifting height and shutting.
- E. Mechanical movement stops in the folded state.
- F. Protection against tilting of the scissor lift.
- G. Press – oilers (greases) for service maintenance of all mobile units of the lifting mechanism.
- H. Chokes for adjusting the lifting and lowering speed of the lifting table.
- I. Safety valves (preventing the table from falling in case of pressure loss in the hydraulic system).
- J. Overload protection.
- K. Hermetic control cabinet.
- L. Mobile remote control.
- M. Platform with fence for safety.
